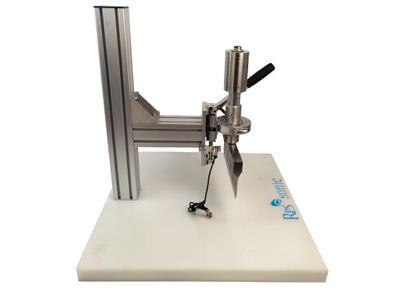

20khz 1000w press Ultrasonic Food Cutting Equipment for Bakery Frozen Food
| Machine | Ultrasonic cake Cutter |
| Frequency(KHz) | 20Khz |
| Power | 1000 W |
| Cutting Blade / Horn | Titanium |
| Voltage(V) | 220V |
| The width of blade | depend on your requirement |
| Cutting thickness | 10~20mm(depend on materials) |
| Horn amplitude | 10-40μm |
| Equipment weight | 1KG |
What's the principle of ultrasonic cutting?
Bakery products containing cream or sugary layers, as well as other dough or fat-containing foods, can be cut or trimmed in a controlled way by ultrasound to produce a quality that is visually appealing. The cutting geometries of the tools for longitudinal or cross cuts are individually tailored to product requirements.
As a result of ultrasonic vibrations, only slight product residues remain adhered to the sonotrode, so that to a certain extent, it demonstrates a self-cleaning action.
Because of the ultrasonic vibrations, cutting sonotrodes work with a lower initial pressure than conventional cutters. At the same time, sonotrode wear is less and the cutting quality is considerably better. In addition, the use of ultrasonic cutting systems has a positive effect on the maintenance and down times of the equipment.
The ultrasonic cutter cutter directly loads the ultrasonic energy onto the cutter, and the cutter becomes a cutter with ultrasonic waves. When cutting the material, the material is mainly softened and melted by the ultrasonic energy, and the cutting edge of the cutter only serves as the slit positioning, the ultrasonic energy output, and the separation material. This cutting method is suitable for cutting thick, thick, long, etc. materials that are inconvenient to set the cutting board. Such as raw rubber output from the rubber mixer, pipe cutting, frozen meat, candy, chocolate cutting, printed circuit boards, or hand-held cutting machines.
The basic structure of the ultrasonic cutting board cutter is similar to that of the ultrasonic cutter cutter, except that the ultrasonic output portion is not a cutter but a standard ultrasonic flat mold. Here, the mold is equivalent to a cutting board. However, this is a cutting board that is used for ultrasonic vibration. The cutting knife can still be used in the traditional shape, but the sharpness of the cutting edge is reduced, and the life of the cutting knife is greatly extended.
Advantage of this Economy Ultrasonic Food Cutting Equipment for Bakery Frozen Food
-
Pleasing cut and form stability
-
Product-specific cutting geometries
-
Cutting sonotrodes with little product adhesion and self-cleaning action
-
Reduction in maintenance and down times
-
Products cut almost irrespective of consistency
Cake,Sandwich, biscuit, wafer, nougat
Frozen cakes and pies
Frozen fish
Snack and health bars
Fresh/frozen prepared meats
Dough or baked cookies
Soft and hard cheeses
Fresh/frozen vegetables
Candy and confections
Ice cream bars
